S 980 P
UL/CSA hoogflexibele TPE/PUR stuurstroomkabel met zwart genummerde aders

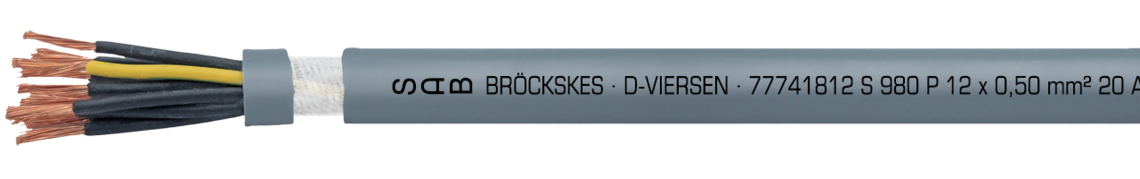

Voorbeeld markering voor S 980 P (7774-1807): SAB BRÖCKSKES · D-VIERSEN · 7774-1812 S 980 P 12 x 0,50 mm² 20 AWG/12c 7774-2012 UL AWM Style 21060 80°C 600V CSA AWM I/II A/B 80°C 600V FT1 FT2 CE
Toepassing
S 980 P is a continuously flexible TPE/PUR control cable with numbered cores and flexibility at low temperatures. It is recommended for use in handling, material handling and automation technologies, wood working and packaging machines, industrial robot construction, car manufacturing industry, and high rack construction.
Bijzondere eigenschappen
- halogen-free
- labs uncritical
- (labs = enamel moisturing interfering substances)
- flexible at low temperatures
- travel > 10 m is possible
- min. bending radius
- high abrasion resistance
Opbouw
| Conductor | bare copper strands acc. to IEC 60228, EN 60228, VDE 0295, class 6 |
|---|---|
| Insulation | TPE |
| Colour code | black cores with consecutive numbers acc. to EN 50334; green-yellow earth wire from 3 cores |
| Stranding | specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer |
| Sheath material | TMPU acc. to DIN VDE 0282 part 10 + HD 22.10 with mat surface |
| Sheath colour | grey (RAL 7000) |
bare copper strands acc. to IEC 60228,
EN 60228, VDE 0295, class 6
TPE
black cores with consecutive numbers acc. to EN 50334;
green-yellow earth wire from 3 cores
specially adjusted layering with netting tape over each layer and one additional non-woven tape over the outer layer
TMPU acc. to DIN VDE 0282 part 10 + HD 22.10 with mat surface
grey (RAL 7000)
Technische data
| Nominal voltage | UL/CSA: 600 V DIN VDE: Uo/U 300/500 V |
|---|---|
| Testing voltage | 3000 V acc. to DIN VDE 0281 part 2 + HD 21.2 |
| Min. bending radius | continuously flexible: 7,5 x d |
| Radiation resistance | 5 x 10^7 cJ/kg |
| Temperature range | DIN VDE fixed laying: -50/+90°C DIN VDE flexible application: -40/+90 °C UL/CSA: up to +80°C |
| Halogen-free | acc. to DIN VDE 0472 part 815 + IEC 60754-1 |
| Fire performance | flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 UL VW-1 + CSA FT1 FT2 |
| Oil resistance | very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10 |
| Chem. resistance | good against acids, alkalines, solvents, hydraulic liquids etc.. |
| Flexibility | very good |
| Absence of harmful substances | gemäß RoHS-Richtlinie der Europäischen Union |
UL/CSA: 600 V
DIN VDE: Uo/U 300/500 V
3000 V acc. to DIN VDE 0281 part 2 + HD 21.2
continuously flexible: 7,5 x d
5 x 10^7 cJ/kg
DIN VDE fixed laying: -50/+90°C
DIN VDE flexible application: -40/+90 °C
UL/CSA: up to +80°C
acc. to DIN VDE 0472 part 815 + IEC 60754-1
flame retardant and self-extinguishing acc. to IEC 60332-1-2 + EN 60332-1-2 UL VW-1 + CSA FT1 FT2
very good - TMPU acc. to DIN VDE 0282 part 10 + HD 22.10
good against acids, alkalines, solvents, hydraulic liquids etc..
very good
gemäß RoHS-Richtlinie der Europäischen Union
